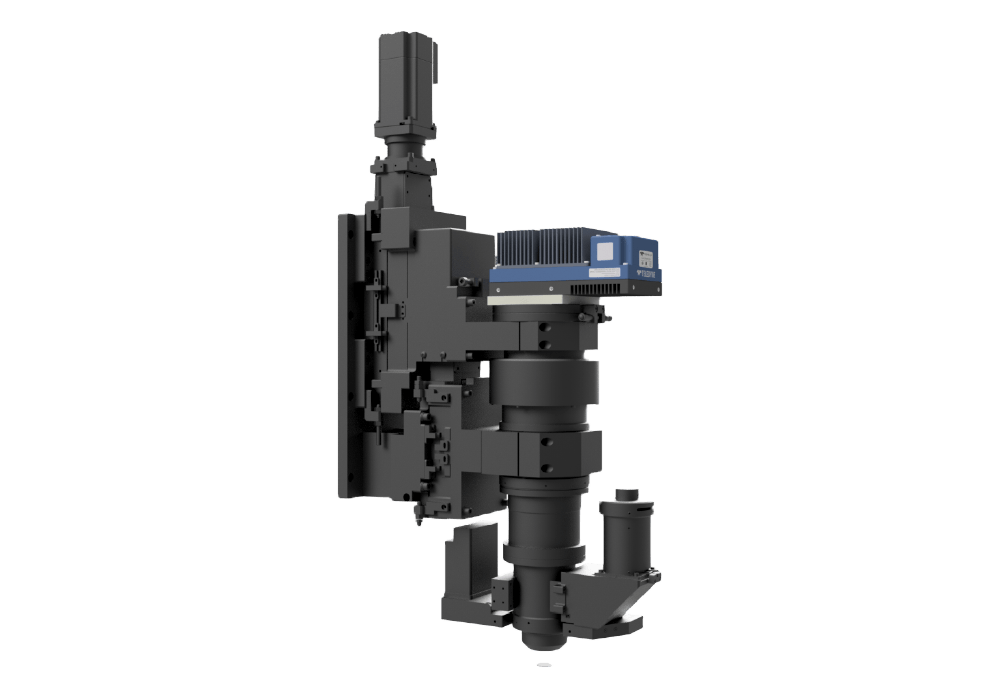

| 項目 | EO-IM-APDA00 仕様 |
|---|---|
| ブランド | Envision |
| シリーズ | マクロレンズシステム（高速モデル） |
| 型式 | EO-IM-APDA00 |
| スキャン速度（mm/s） | 500 |
| 最大追従誤差（μm） | 1.5 |
| 被写界深度（μm） | ±2.3 |
| 倍率 | 10x |
| フォーカス範囲（mm） | 20 |
| IF | Ethernet |
| ティルト条件 | 20µm/50mm |
| モーションタイプ | ステップモータ/デュアルモーション |
| カメラタイプ | ラインスキャン |
| カメラモデル | Teledyne DALSA Linea HSシリーズ |
| レンズモデル | APO Diamond 10x |
